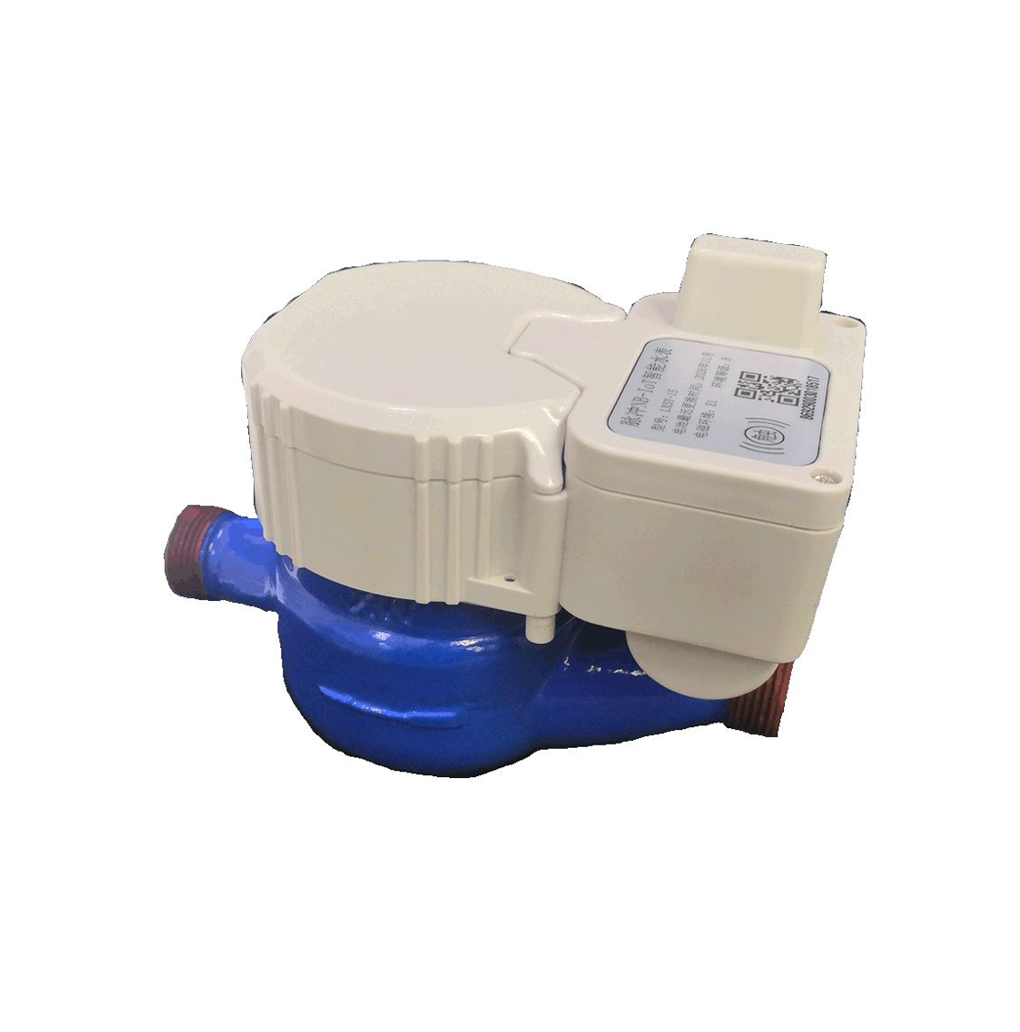

Wireless remote transmission cold water meter is used to measure the total volume of water flowing through the tap water pipeline measurement instrument, the new type of water meter, the use of new technology, novel design, reasonable, excellent material selection, beautiful appearance, precision assembly, easy maintenance. This series of wireless remote cold water meter is based on the mature mechanical cold water meter to add electronic automatic sampling counting, wireless data transmission, remote and other functions, convenient management department remote monitoring and management.
peculiarity
2.1 Without wiring, it is a measuring instrument for the modern management of remote meter reading in new residential areas, old areas and park construction;
2.2 Easy maintenance and replacement, intelligent module and base table can be split;
2.3 The rotor wet liquid-sealed base table has high sensitivity and small initial flow rate;
2.4 Special structural design, advanced testing means, reliable signal acquisition;
2.5 Do not change the technical indicators of the original water meter, retain the original wet liquid-sealed water meter word wheel display reading function;
2.6 High reliability sensor, strong anti-interference, long service life;
2.7 It can be combined with the meter reading system to establish a remote automatic meter reading management system to truly realize the automation of meter reading;
Performance parameter
² Ambient temperature：0～50℃
² Fluid water temperature：0.1℃～30℃
² Pressure loss rating：ΔP63
² Working water pressure：≤1M Pa
² Installation environment：class B
² Electromagnetic environment：E1
² Wireless mode：NB-IoT
² Operating voltage: battery capacitor combination 3.0-3.6V
² Protection level：IP68
² Meets the technical requirements of GB/T778-2018 "Drinking cold water meter and hot water meter" and CJ/T224-2012 "Electronic remote Water meter".
Metrological parameter
² Range ratio：Q3/Q1≥100:1
² Precision level: Level 1
Nominal caliber(mm) | Overload flowQ4(m3/h) | Service flow Q3(m3/h) | Demarcation flowQ2(m3/h) | Minimum flow Q1(m3/h) |
DN15 | 3.125 | 2.5 | 0.04 | 0.025 |
DN20 | 5 | 4 | 0.064 | 0.04 |
DN25 | 7.875 | 6.3 | 0.1008 | 0.063 |
Wireless remote transmission cold water meter is used to measure the total volume of water flowing through the tap water pipeline measurement instrument, the new type of water meter, the use of new technology, novel design, reasonable, excellent material selection, beautiful appearance, precision assembly, easy maintenance. This series of wireless remote cold water meter is based on the mature mechanical cold water meter to add electronic automatic sampling counting, wireless data transmission, remote and other functions, convenient management department remote monitoring and management.
peculiarity
2.1 Without wiring, it is a measuring instrument for the modern management of remote meter reading in new residential areas, old areas and park construction;
2.2 Easy maintenance and replacement, intelligent module and base table can be split;
2.3 The rotor wet liquid-sealed base table has high sensitivity and small initial flow rate;
2.4 Special structural design, advanced testing means, reliable signal acquisition;
2.5 Do not change the technical indicators of the original water meter, retain the original wet liquid-sealed water meter word wheel display reading function;
2.6 High reliability sensor, strong anti-interference, long service life;
2.7 It can be combined with the meter reading system to establish a remote automatic meter reading management system to truly realize the automation of meter reading;
Performance parameter
² Ambient temperature：0～50℃
² Fluid water temperature：0.1℃～30℃
² Pressure loss rating：ΔP63
² Working water pressure：≤1M Pa
² Installation environment：class B
² Electromagnetic environment：E1
² Wireless mode：NB-IoT
² Operating voltage: battery capacitor combination 3.0-3.6V
² Protection level：IP68
² Meets the technical requirements of GB/T778-2018 "Drinking cold water meter and hot water meter" and CJ/T224-2012 "Electronic remote Water meter".
Metrological parameter
² Range ratio：Q3/Q1≥100:1
² Precision level: Level 1
Nominal caliber(mm) | Overload flowQ4(m3/h) | Service flow Q3(m3/h) | Demarcation flowQ2(m3/h) | Minimum flow Q1(m3/h) |
DN15 | 3.125 | 2.5 | 0.04 | 0.025 |
DN20 | 5 | 4 | 0.064 | 0.04 |
DN25 | 7.875 | 6.3 | 0.1008 | 0.063 |
